Testing machine for optical cables

Optical cable testing machines evaluate both the mechanical and optical performance of fiber optic cables to ensure reliability, durability, and compliance with industry standards.

Types of Optical Cable Testing Machines

Mechanical Testing Machines: These machines assess the physical robustness of fiber optic cables. Common tests include:

• Tensile Strength Testing: Measures the maximum load a cable can withstand without compromising optical performance, simulating installation and operational stress (Torontech, Testro TT-OFT, Univer CTC-1000) .
• Crush Resistance Testing: Evaluates the cable's ability to resist compressive forces, important for underground or high-pressure environments .
• Impact Testing: Simulates sudden shocks or drops to assess cable durability during handling .
• Temperature Cycling: Machines like the UNIVER TCC-1000 apply temperature variations to test the stability of optical attenuation under environmental changes .
• Vibration Testing: Aeolian and galloping vibration tests simulate wind-induced stress on aerial cables, ensuring signal integrity under dynamic conditions . Optical Testing Machines: These devices focus on the performance of the fiber in transmitting light signals. Key tools include:
• Optical Power Meters and Light Sources: Measure signal strength and insertion loss .

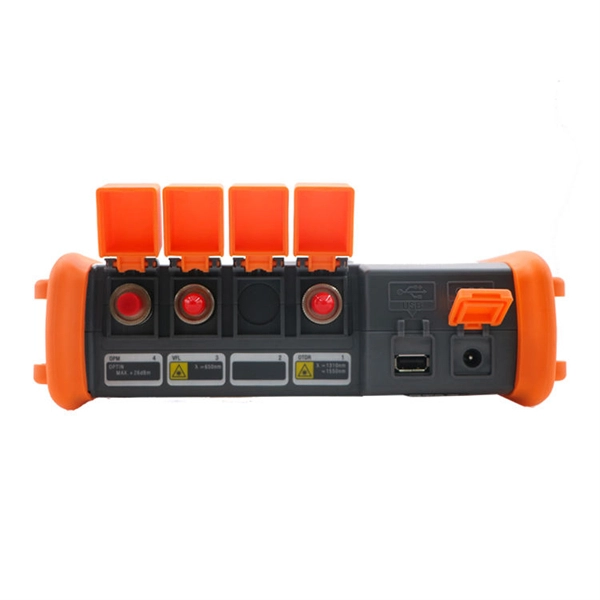

• Optical Time Domain Reflectometers (OTDR): Detect faults, splices, and connectors along the cable length, providing detailed trace analysis .
• Visual Fault Locators: Identify breaks or defects in the fiber .

Standards and Compliance

Most optical cable testing machines are designed to comply with IEC 60794 standards, which define mechanical and environmental performance criteria for fiber optic cables . Other relevant standards include ISO 7500-1, ASTM E4, EN 10002-2, and IEEE 1222, depending on the type of test performed . Compliance ensures that cables meet industry requirements for installation, operational reliability, and long-term durability.

Key Considerations

When selecting a testing machine, consider:

• Type of cable: Indoor, outdoor, aerial, or underground.
• Test requirements: Mechanical stress, optical performance, environmental resilience.
• Accuracy and repeatability: Machines like the TT-OFT provide ±0.5% accuracy for tensile and crush tests .
• Automation and data logging: Advanced testers can automatically detect break points and record results for quality assurance .

Conclusion

Optical cable testing machines are essential for ensuring the mechanical integrity and optical performance of fiber optic networks. By combining mechanical tests (tensile, crush, impact, vibration, temperature cycling) with optical assessments (OTDR, power meters, visual fault locators), these machines help manufacturers, telecom operators, and research institutions maintain high-quality, reliable fiber optic infrastructure .
