Fiber Optic Terminal Box and Fiber Optic Splitter

Fiber optic terminal boxes provide secure termination, splicing, and distribution of optical fibers, while fiber splitters divide a single fiber signal into multiple outputs for FTTH and FTTx networks.

Fiber Optic Terminal Boxes

Fiber optic terminal boxes, also known as FTTH termination boxes or distribution boxes, serve as the interface between the feeder cable and drop cables in fiber networks. They are designed for indoor or outdoor use and provide functions such as:

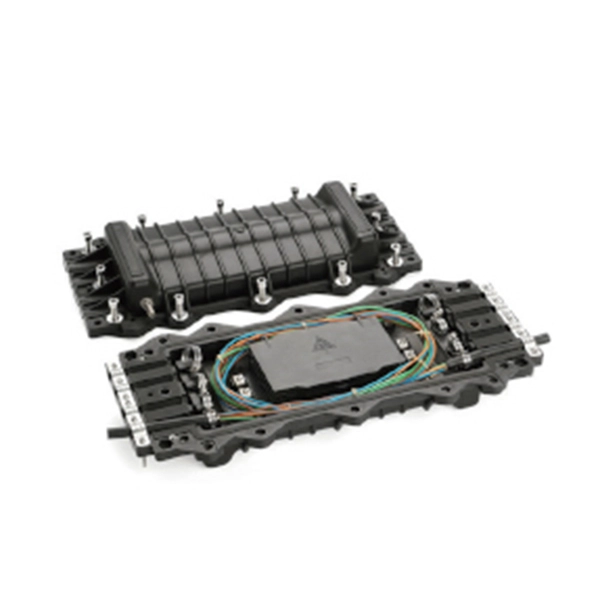

• Fiber splicing and termination: Securely join fibers from the main network to drop cables.
• Storage and management: Organize excess fiber length and protect fibers from bending or damage.

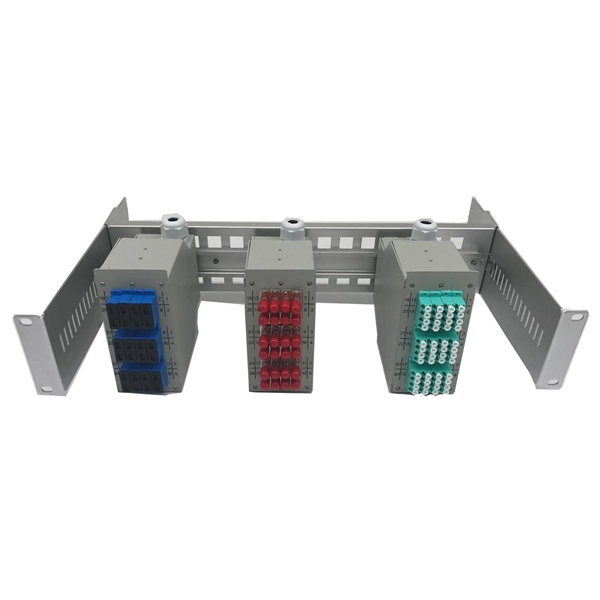

• Adapter ports: Support SC, LC, FC, ST connectors in simplex or duplex configurations.

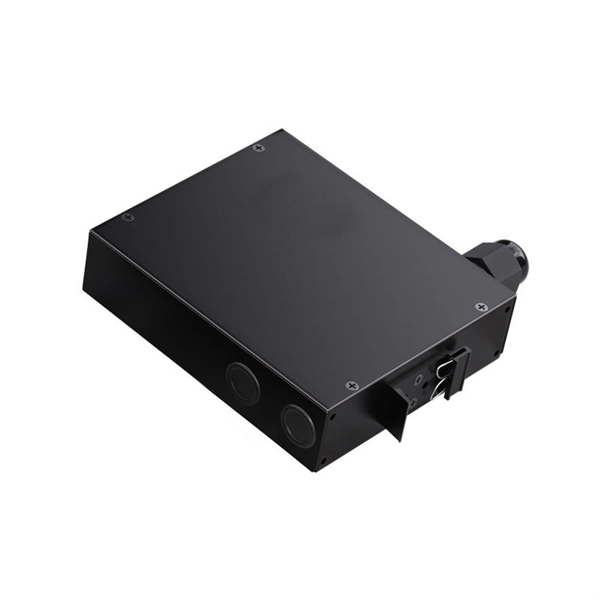

• Mounting options: Wall-mounted, pole-mounted, or DIN rail-mounted for flexible deployment.
• Environmental protection: Many boxes are IP65 rated, water-resistant, and UV-resistant for outdoor use.
• Security: Lockable enclosures prevent unauthorized access. Terminal boxes come in various capacities, typically ranging from 6 to 48 cores, and may include transparent lids for easy inspection and modular designs for easy expansion .

Fiber Splitters

Fiber splitters, often PLC (Planar Lightwave Circuit) splitters, are installed inside terminal boxes to divide a single optical signal into multiple outputs. Common configurations include:

• 1×2, 1×4, 1×8, 1×16, 1×32 splitters.
• Insertion loss: Typically 0.2–0.5 dB per split.
• Integration: Splitters can be mounted on trays inside the terminal box for organized fiber management.
• Applications: Enable a single feeder fiber to serve multiple subscribers in FTTH networks. Some terminal boxes can accommodate multiple splitters, for example, up to four 1×8 splitters, allowing flexible network design and expansion .

Key Features and Considerations

• Material: ABS or ABS+PC for durability and lightweight design.
• Installation: Ready for wall mount with installation kits; some support DIN rail mounting.
• Indoor/Outdoor Use: Many boxes are suitable for both, with anti-rust and waterproof designs.
• Customization: Options for port configuration, splitter type, and branding.
• Maintenance: Two-layer designs separate splicing and termination areas for easier fiber management.

Summary

Fiber optic terminal boxes and fiber splitters are essential components in FTTH and FTTx networks, providing secure, organized, and scalable solutions for fiber termination, splicing, and signal distribution. Choosing the right box depends on fiber count, splitter configuration, installation environment, and connector type, ensuring reliable high-speed connectivity for residential, commercial, or multi-dwelling unit deployments .
