Fan Temperature Control Box and Distribution Box

Effective temperature control in a distribution box relies on proper fan selection, placement, and automated control using thermostats or electronic temperature switches to maintain safe operating conditions.

Importance of Temperature Control

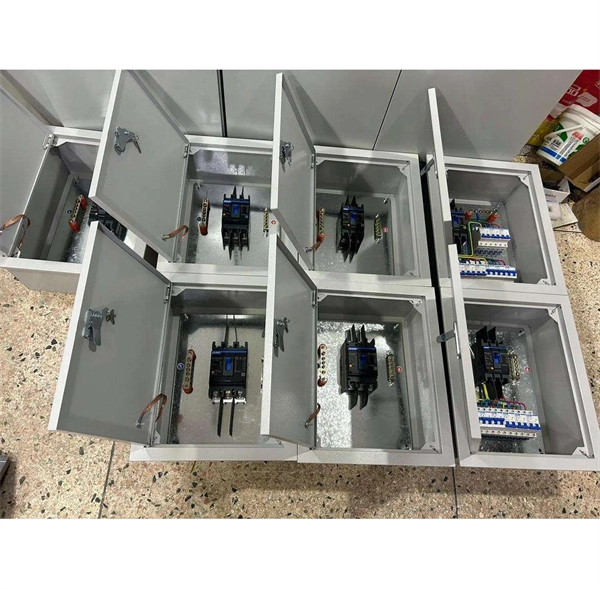

Electrical components in distribution boxes, such as fuses, contactors, and residual current devices, generate heat during operation. Excessive heat can lead to component failure, reduced lifespan, process errors, or even fire hazards. Maintaining the internal temperature below critical limits (typically under 35°C for many fan distribution boxes) ensures reliability and prevents overheating of sensitive components .

Cooling Methods

1. Passive Ventilation: Uses natural convection through ventilation grilles. Warm air rises and exits the enclosure, drawing cooler air in. Suitable for low heat loads and clean environments .

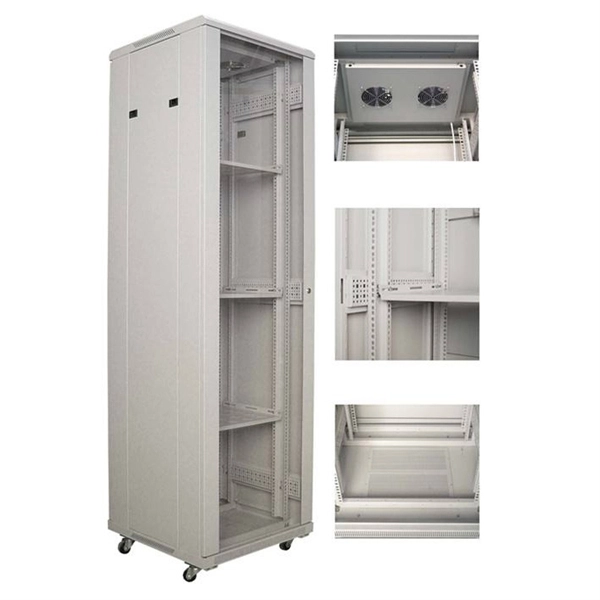

2. Forced Ventilation (Fan Units): Fans actively push hot air out and pull cool air in. This is the most common and cost-effective method for distribution boxes. Proper airflow design is crucial: intake at the bottom and exhaust at the top ensures efficient heat removal .

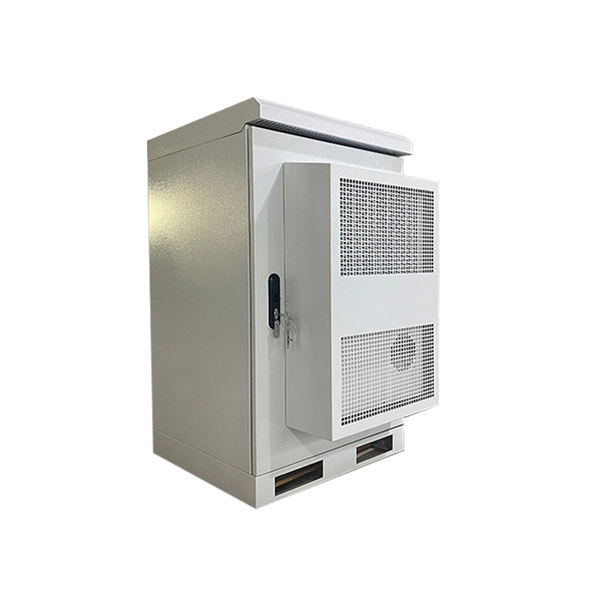

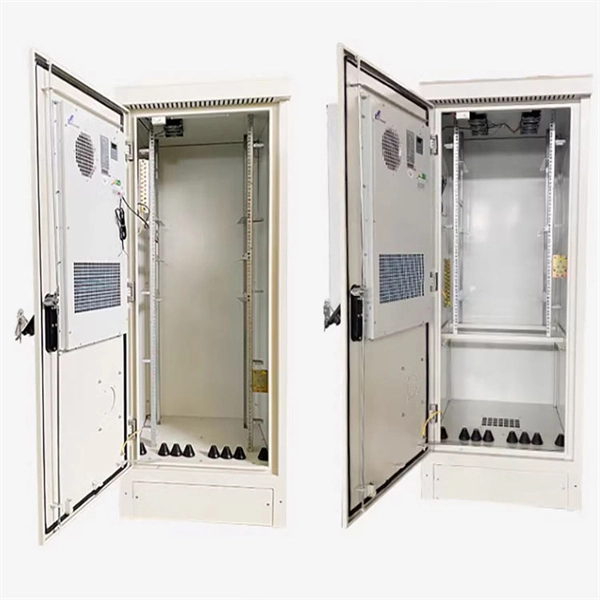

3. Advanced Cooling: For high heat loads or sealed enclosures, air/air or air/water heat exchangers and industrial air conditioners can maintain temperature while protecting against dust and moisture .

Fan Temperature Control

Automated fan control improves efficiency and reduces wear. Common approaches include:

• Bimetal Thermostats: Simple mechanical switches that turn fans on/off at preset temperatures.
• Electronic Temperature Switches: Devices like the TMP302 can detect over-temperature conditions and control fan operation with precise trip points and hysteresis. For example, a fan can be set to turn on at 60°C and off at 50°C, preventing unnecessary operation while maintaining safe temperatures .
• Integrated Controllers: Some designs use inverters or MOSFETs to drive multiple fans based on temperature sensor outputs, allowing scalable and flexible control for larger distribution boxes .

Best Practices

• Avoid direct sunlight and high ambient temperatures to reduce heat load .
• Ensure proper airflow: Bottom intake → upward flow → top exhaust.
• Regular maintenance: Clean or replace filters to prevent airflow restriction, which can reduce cooling efficiency by up to 60% .
• Monitor critical components: Identify heat-generating devices like power supplies or VFDs and ensure airflow reaches these areas.
• Consider enclosure protection: IP-rated enclosures may require filter fans or closed-loop cooling to maintain both temperature and dust/moisture protection . By combining proper fan placement, automated temperature control, and regular maintenance, distribution boxes can maintain optimal thermal conditions, ensuring long-term reliability and safety of electrical components.
