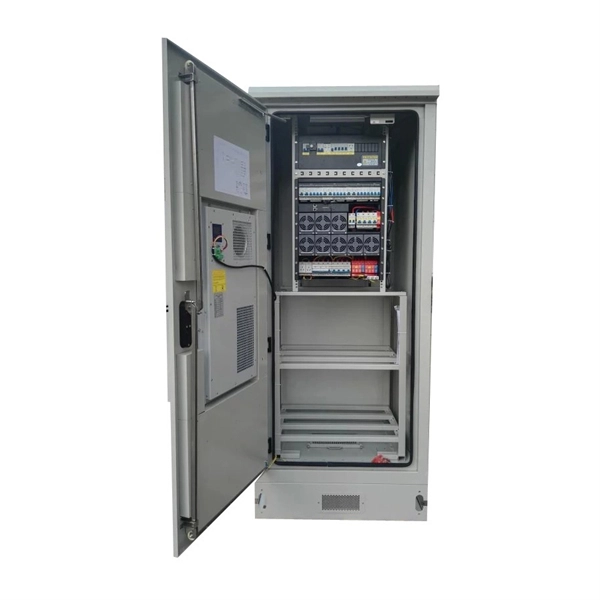

The number of circuits in the distribution box should not exceed number
The number of circuits in a distribution box must not exceed the panel's rated capacity as specified by the manufacturer and relevant electrical codes.
Regulatory Limits
According to the National Electrical Code (NEC 408.54), the total number of circuits or circuit breakers installed in a panel must not exceed the panel's listed capacity. Overcrowding is prohibited, and wire fill must comply with the panel's design specifications. Panels should also allow for future expansion, typically not exceeding 80% of full rated capacity for initial installation . For service disconnects, NEC 230.71 allows up to six disconnects per service in a single enclosure, but modern code revisions generally require one main disconnect per service unless specific configurations are met .
Physical and Design Considerations
The actual number of circuits is determined by the physical slots in the panel and the bus bar capacity. A standard 200-amp residential panel usually has 30 to 42 slots, with each slot accommodating a single-pole breaker or half of a double-pole breaker. Double-pole breakers, used for 240-volt appliances, occupy two slots . To increase the number of circuits beyond standard slots, tandem or slimline breakers can be used, but only if the panel is rated for them. Not all panels accept tandem breakers, and the panel's internal documentation specifies the maximum allowed .
Practical Installation Guidelines
- Always select a distribution box that matches the actual load and future expansion needs.
- Ensure proper busbar compatibility, neutral and earth bar arrangement, and short-circuit rating.
- Leave adequate space for heat dissipation and wiring room.
- Seal unused knockouts to maintain protection equivalent to the cabinet wall .
Key Takeaway
The maximum number of circuits is not a fixed number but depends on the panel's rated capacity, physical design, and code compliance. Exceeding these limits can compromise safety, violate electrical codes, and reduce the panel's lifespan. Always follow manufacturer specifications and local electrical regulations when planning circuit installations.
