Connecting the optical distribution box to the OLT
The OLT connects to an optical distribution box via the Optical Distribution Network (ODN), which includes fiber cables, splitters, and distribution hubs to route signals to multiple end users.
Overview of the Connection Path
- OLT (Optical Line Terminal) The OLT is located at the service provider's central office and serves as the central control unit of a PON. It converts electrical signals into optical signals and manages communication with multiple ONUs or ONTs at the subscriber side, controlling bandwidth allocation and data flow .
- Optical Distribution Network (ODN) The ODN is the passive fiber infrastructure that links the OLT to the optical distribution box. It typically consists of:
- Main fiber cables running from the OLT to a Fiber Distribution Hub (FDH) or directly to the distribution box.
- Optical splitters that divide a single fiber signal into multiple paths to serve several end users efficiently .

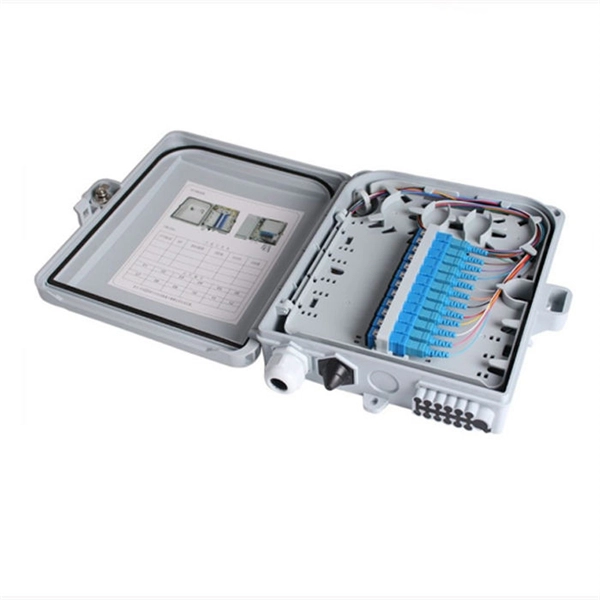

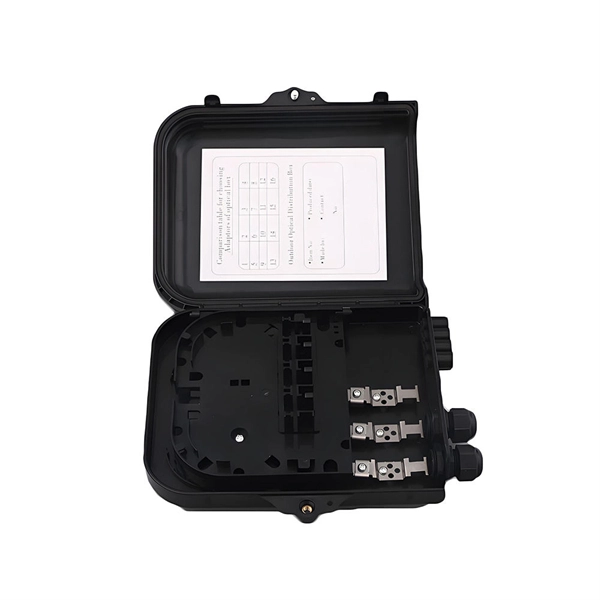

- Fiber Distribution Hub (FDH) / Optical Distribution Box (ODB) The optical distribution box, sometimes called a Fiber Distribution Box (FDB), acts as an intermediate point where the main fiber from the OLT is split and distributed to individual drop fibers. It provides:
- Signal distribution to multiple subscriber lines.
- Protection and management of fiber connections, including splicing and patching interfaces.
- Integration with splitters if secondary splitting is required for multi-dwelling units or dense neighborhoods .
- Drop Fiber to ONU/ONT From the optical distribution box, individual fibers (drop fibers) run to ONUs or ONTs at the customer premises. The ONU/ONT converts the optical signal back into electrical signals for routers, Wi-Fi devices, or other end-user equipment .
Key Considerations
- Distance and Loss Management: The ODN and distribution box must be designed to minimize optical loss, ensuring signal quality over distances up to 20 km or more depending on network design .
- Splitter Ratios: Common splitter ratios (e.g., 1:8, 1:16, 1:32) determine how many end users can be served from a single OLT port. The optical distribution box houses these splitters for efficient distribution .
- Installation: Optical distribution boxes are typically installed on walls, poles, or in hallways, providing easy access for maintenance and fiber management . In summary, the connection from an OLT to an optical distribution box involves main fiber cables from the OLT, passive splitters within the ODN, and the distribution box that routes fibers to individual subscribers, forming the backbone of a PON-based FTTH network .
