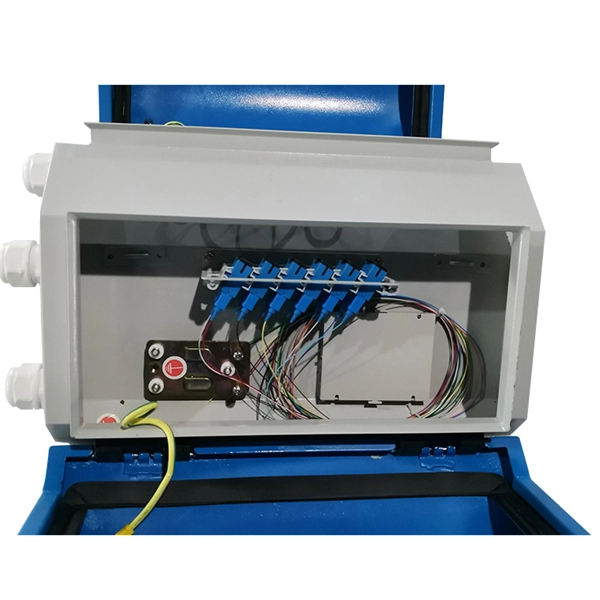

Grounding wire of optical cable junction box

The grounding wire in an optical cable junction box is essential for protecting the box and network from electrical surges and lightning strikes.

Purpose of the Grounding Wire

The grounding wire serves to safeguard the optical cable junction box and the connected network by providing a low-resistance path to the earth for any stray electrical currents, including those caused by lightning or power line faults. Proper grounding prevents damage to the optical fibers, electronic components, and ensures network reliability .

Installation Best Practices

1. Connection to Grounding System: The junction box should be connected to the facility's main grounding system or a dedicated grounding rod. This ensures that any electrical surge is safely dissipated into the earth .
2. Use of Appropriate Materials: Grounding wires should be made of corrosion-resistant materials such as copper or tinned copper to maintain conductivity over time and withstand environmental conditions .
3. Secure Attachment: The grounding wire must be firmly attached to the junction box using approved clamps or terminals to prevent loosening due to vibration or weather exposure .
4. Regular Inspection: Periodic checks should be performed to ensure the grounding connection remains intact and free from corrosion or mechanical damage .

Additional Considerations

• Integration with OPGW Systems: In optical ground wire (OPGW) installations, the junction box is often mounted on transmission towers, and the grounding wire may also connect to the tower structure to enhance lightning protection .
• Compliance with Standards: Follow local electrical codes and standards (e.g., IEEE guidelines) to ensure the grounding system meets safety and performance requirements .

Summary

Proper grounding of an optical cable junction box is critical for network protection, safety, and longevity. By connecting the box to a reliable grounding system, using durable materials, and performing regular inspections, installers can prevent electrical damage and maintain uninterrupted optical network performance .
